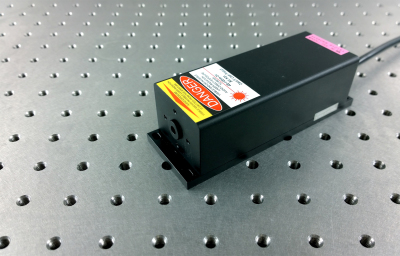

Beam Expanded Green Laser
| Features: |
| ·Free Space Output |
| ·High Stability |
| ·Excellent Beam Profile |
| ·Small Beam Divergence |
| Parameter | Symbol | Specs |  |
| Output Power(cW) | Po | 1-300Mw | |
| Operation Temperature(1) | Topr | 0℃～40℃ | |
| Storage Temperature | Tstg | -40℃～85℃ |
(1):Box Temerature
Optical ParametersNote:
|
Parameters
|
Operation Condition
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
|
Output Power
|
APC modle
|
PO
|
|
|
300
|
mW
|
|
Beam Modle
|
|
|
|
TM00
|
|
|
|
Beam Diameter
|
Po , 1/e2
|
|
|
7.0
|
|
mm
|
|
Beam Divergence
|
Po , 1/e2
|
|
|
|
0.5
|
mrad
|
|
Beam Roundness
|
|
|
90
|
|
|
%
|
|
Power Stability
|
2hrs
|
Ps
|
|
3
|
5
|
%
|
|
Center Wavelength
|
@PO
|
λc
|
531.5
|
532
|
532.5
|
nm
|
|
Life time (2)
|
@PO
|
MTBF
|
|
5,000
|
|
Hrs
|
注: (2):Laser Diode
|
Free Space Output
|
|
||||
|
GL-AAA-BB
|
|
||||
|
Note:
|
|||||
|
AAA
|
Output Power: 30mW, 50mW……
|
|
|
||
|
BB
|
Package Type
|
|
|
||
|
T
|
35 x 35 x 102mm
|
|
|
||
|
T2
|
49 x 42 x 140mm
|
|
|
||
|
For Example: GLN-100-T2
|
|
||||
|
532nm, 100mW , 49 x 42 x 140mm, Low Noise
|
|
||||

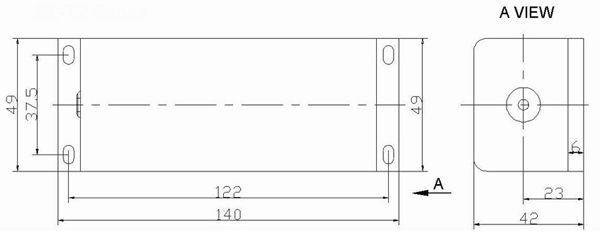

532nm GLN-T2 Series, Package Detail
|

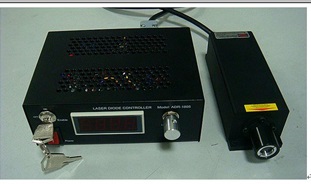

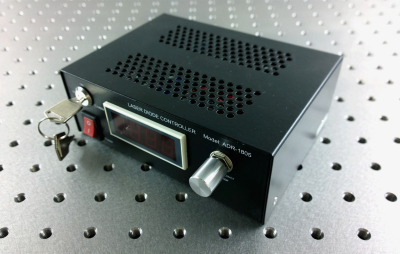

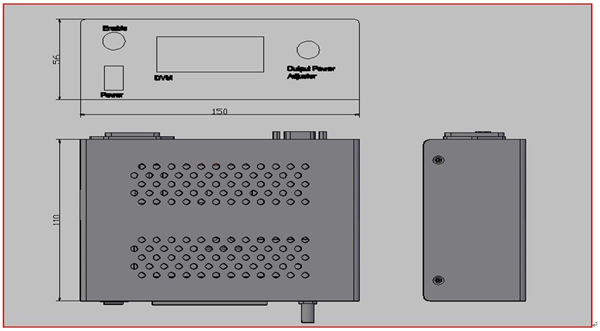

Laser head and Power Supply Separated Package: 1~300mW 532nm
|
|
|
With TEC, APC power stability Control;
|
90~245VAC,
|
 |
 |
 |
|
 |
|
